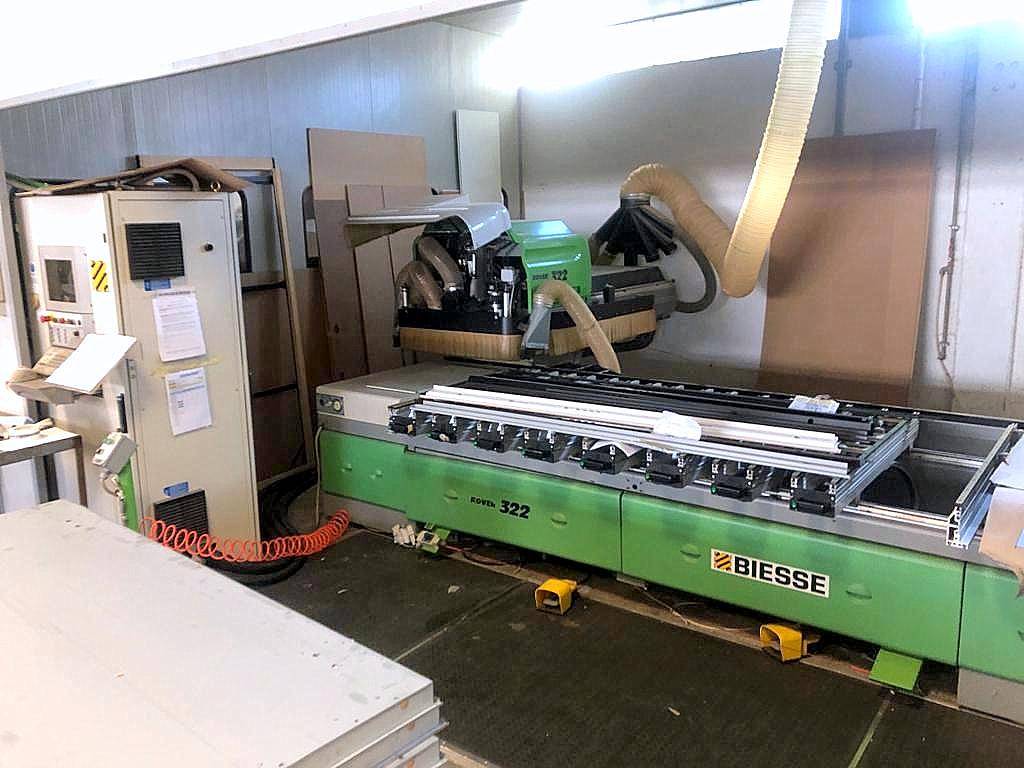

CONTROL SYSTEM
• Numerical control XNC
• Separated electrical cabinet
TECHNICAL FEATURES
• Useful working area (x-y-z): 2.700 x 1.144 x 114 mm
PANEL SUPPORT AREA
• Nr. 8 working tables
• Nr. 3 Counterblocks for each working table with vacuum system for the locking of the working piece
• Nr. 1 Vacuum pump 90 m³/h
BORING UNIT
• Nr. 1 Boring head completed of:
- Nr. 14 Independent spindles for vertical drilling in "X"
- Nr. 12 Independent spindles for vertical drilling in "Y"
- Nr. 3 Independent spindles with double outlet (3+3) for horizontal drilling in "X"
- Nr. 1 Independent spindle with double outlet (1+1) for horizontal drilling in "Y"
SECTIONING/MILLING UNIT
• Nr. 1 Electrospindle 7,8 kW - clamping system ISO 30
• Revolver tool changer with nr. 6 positions
• Nr. 1 Index circular blade - diameter 140 mm
NORM AND OPTIONAL FOR THE SECURITY
• Copy of original EC Declaration of Conformity
• Frontal electronic security mats
• Lateral security fences
- Italy
- Second hand
