Make:
Cosmec - italy
Model:
Sa/31-10
Description:

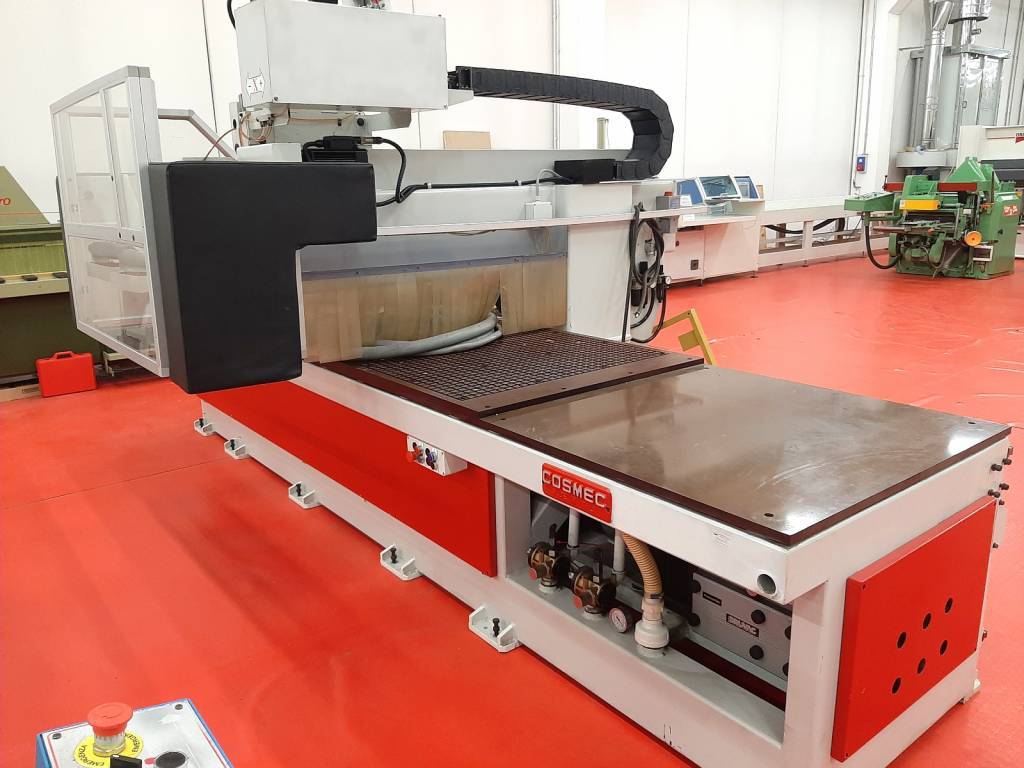

3-axis CNC working centre COSMEC - ITALY - SA/31-10 - CE Standard
with NESTING table for wood, furniture, panels, plastics, composites and various materials
Table NESTING dimensions mm 3100 x 1000
X axis stroke mm 3250 - Y axis stroke mm 1400 - Z axis stroke mm 300
Feed speed X - Y mt/min 56
Feed speed Z mt/min 12
Maximum clearance above worktable mm 250
Milling unit Hp 10,7 (Kw 7,9) - ISO30 attachment at 18000 rpm
Automatic tool changer with 6 positions - Inverter power Kw 11 - Rpm 500/18000
Vacuum pump 100 mc/h
Numerical control OSAI series 10
Automatic lubrication
Side guards
Compressed air 8 bar
Weight kg 3200
Code: ML0013
- Italy
- Second hand
