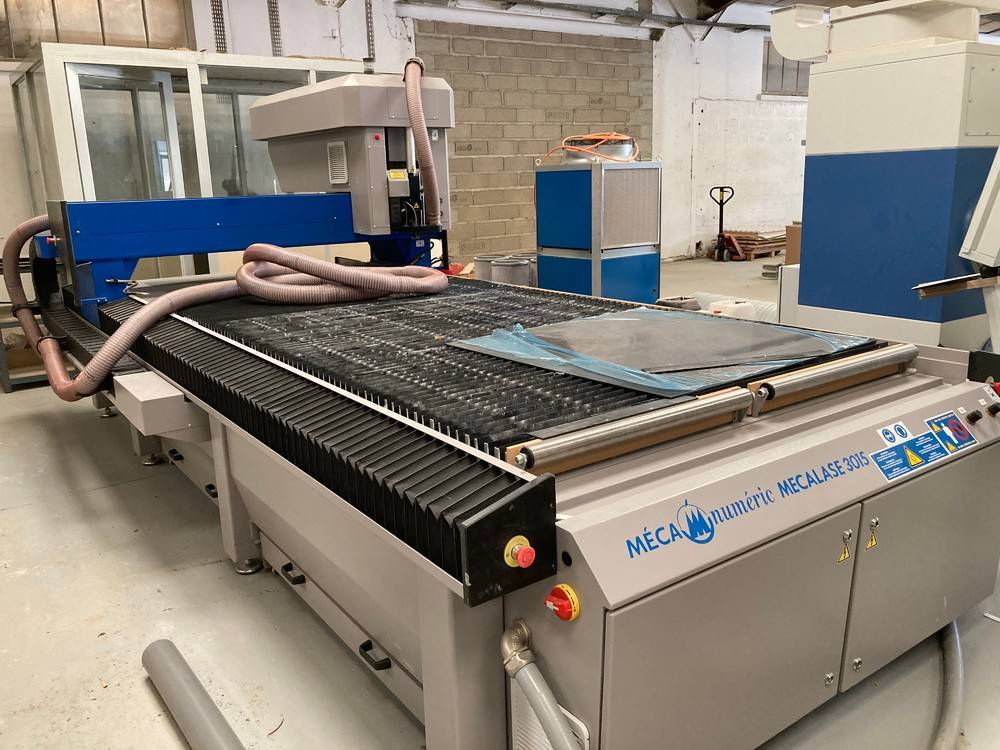

MECALASE 3015 PACK PMMA
Ref: C2667
Forward spped 15m/min Digital control CN7000 ISO, IHM Mécanumeric on mobile panel with 15 inch touchscreen, data entry Ethernet link 500 W direct current servo motorization on the 3 axes Guides by rectified prismatic rails and ball bearing shoes Ball screw transmissions on X1, X2, Y and Z axes Protection of the kinematics of the axes by telescopic bellows on the X, Y, Z axes Aluminum bar support plate Digital Z axis 195 mm Cutting head with sealed CO2 ROFIN SINAR laser including laser, unit of control, cooling, mirrors - Maximum power 360 W Aiming laser Equipment compliant with CE directives following recommendations 2006/42 / CE + 2014/30 / UE + 2006/95 / CE and including: Double safety circuit with standardized relay + shock detector buffers on gantry
Course X axis: 3050 mm
Course Y axis: 1510 mm
Course Z axis: 195 mm
- France
- Second hand
