PRODUCT CODE: UD1252 - 1724

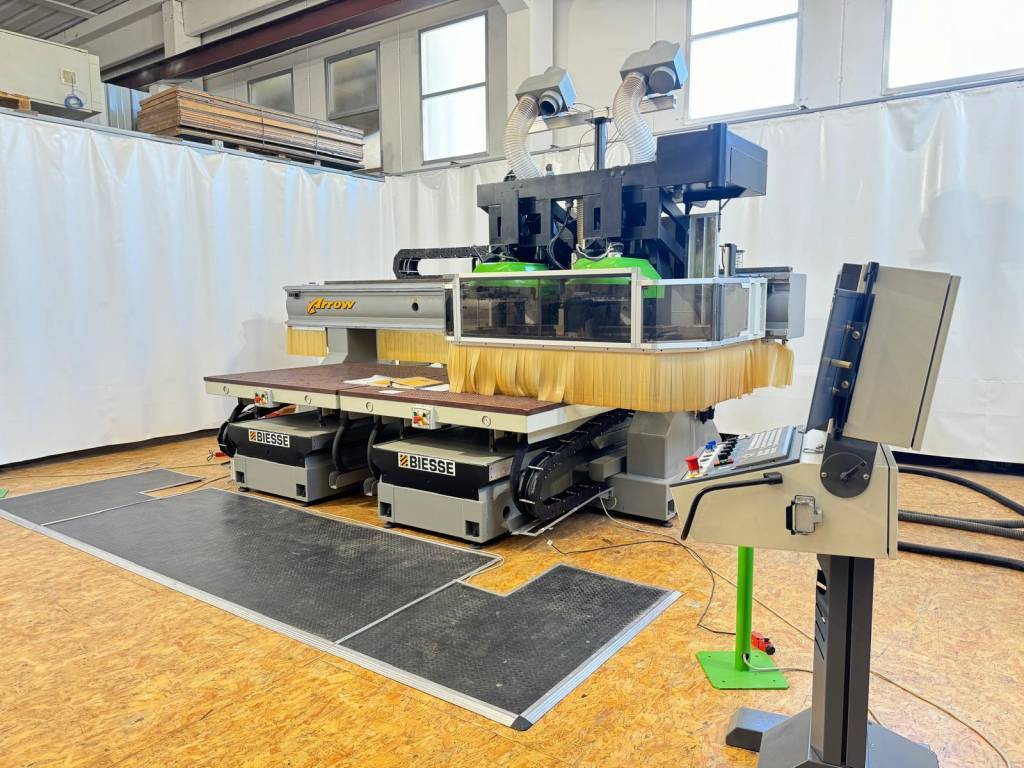

Biesse Arrow machining centre
Model: Arrow
Year: 2000
Description:
With the Arrow model from 2000, Biesse offers an unparalleled opportunity for your carpentry. This cutting-edge machining center combines high-level performance with unparalleled versatility, allowing you to achieve amazing results on every project.
The heart of this system is represented by its 2 independent revolver tool changers with 10 positions, designed to guarantee extraordinary processing speed without compromising quality. Thanks to the double 1600 x 1600 mm processing field, your productivity will reach levels never seen before, allowing you to complete your projects quickly and efficiently.
But that's not all: the 4-port and 4-damper suction system with high pressure zone ensures a clean and safe working environment, while the double nesting table with independent movement offers you maximum flexibility for your production. With an extra pneumatic stroke of the front loading table, the operator's safety always comes first.
Equipped with the OSAI 10/310 numerical control, this machining center offers an intuitive programming experience and precise control over every step of the process.
Characteristics:
Complete with 2 independent 10-position revolver tool changers for high processing speed
High productivity thanks to the double 1600 x 1600 mm processing field
Suction system with 4 ports and 4 dampers with high pressure zone
Double nesting table with independent movement for high production
21-point drilling unit
Extra pneumatic stroke of the table for front loading and operator safety
OSAI 10/310 numerical control
Technical specifications:
Double worktop: 1600 x 1600 mm
Axis movement speed: 80 m/min
Workpiece passage: 300 mm
Electrospindle center distance: 780 mm
Electrospindle power: 8 Kw
Drilling unit: 19 spindles
Double tool magazine: 10 + 10
Maximum tool diameter: 160 mm
Maximum installed power: 45 Kw
Dimensions:
6950 x 5350 x 3770 h mm
Weight: 6855 kg
