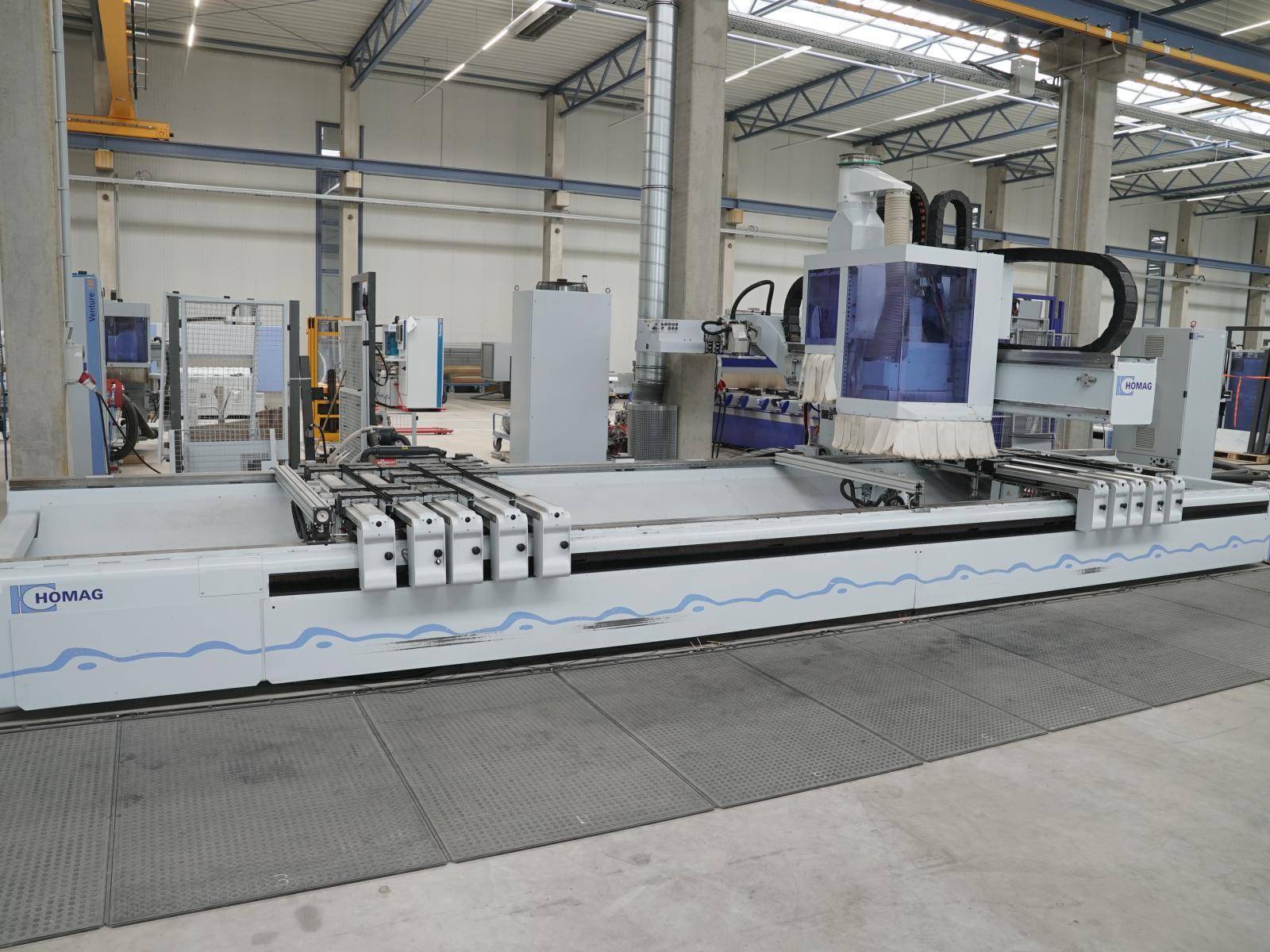

Year of manufacture 2011
Working dimension X 6.175 mm
Working dimension Y 1.850 mm
Working dimension Z 300 mm
Independent Z-axes 2
Number of milling spindles 1
Main motor power 15 kW
Rotation speed max 24.000 rpm
Torque support
4th axis C-axis
5th axis Aggregate interface
Tool clamping system HSK-F63
Tool changer positions 30
Number of exchangeable units 3
Vertical drilling spindles 17
Horizontal drilling spindles in X 2
Horizontal drilling spindles in Y 2
Groove saw 90° turnable
Edgebanding aggregate Laser technology, Seperate Y-axis
Edgeband height max 65 mm
Places in coil magazine 7
Cantilever machine
Machine table Pod and rail table
Number of consoles 10
Self-adjusting machine table
Vacuum pump
Capacity vacuum pump 300 m³/h
Safety device Safety mat
Chip conveyor
HOMAG AP table
HOMAG Movepart
Milling spindle liquid-cooled
Blow-off device
Vibration sensor
Chain changer
HOMAG Quality package
HOMAG Flex 5 interface
Control HOMAG POWER CONTROL PC 85
Software HOMAG WOODWOP 6.0, HOMAG WOODSCOUT
Conformity marking CE mark
Space requirement Length 11,25 m
Space requirement Width 8,502 m
Space requirement Height 3,015 m
* AP machine table with 4 platforms for suction cups per bar and MOVEPART function
* Two of the platforms are reinforced PM-platforms for the usage of powerClamp window clamps
* Laser-edgebanding unit for panel thickness 15-60 mm, with automatic thickness adjustment by means of a scanner system, Diode-laser 1.500 W
* Trimming unit with 6-places coil magazine, moving with the X-support
* Additional external Trimming unit and 1-place coil magazine
* HSK-F63 aggregates for the tool-changer:
- Combination aggregate edge milling/scraping R3
- Traced trimming aggregate
- Saw aggregate
Further mechanical clamps, tools, toolholders, and aggregates, possibly shown on pictures, are not included.
