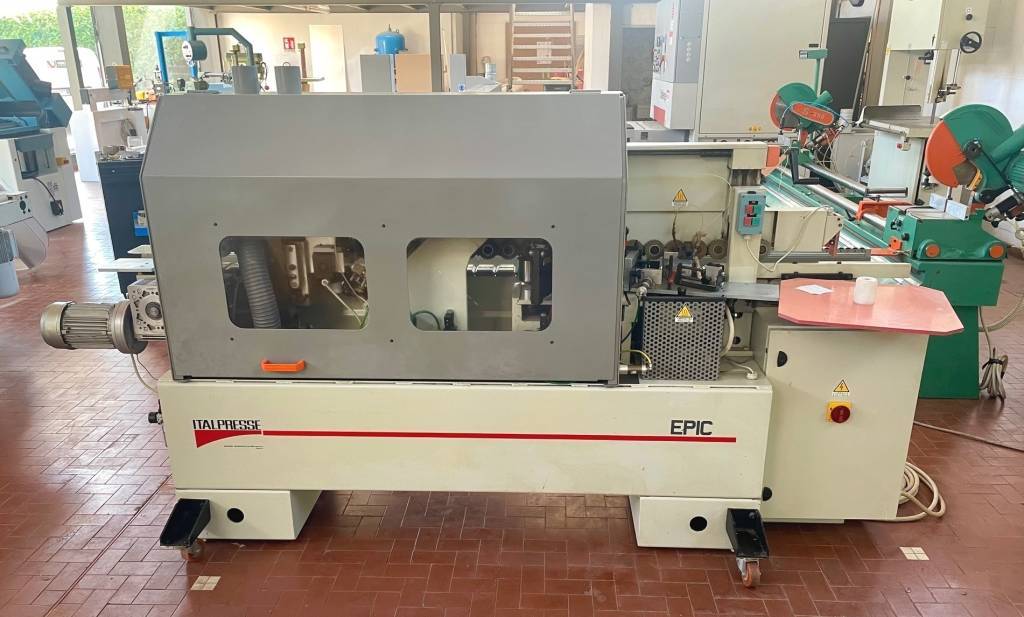

Edgebander ITALPRESSE mod. EPIC 8 used
1) Gluing unit
2) End cutting unit
3) Tilting trimming unit
Technical data:
Max edge height 60 mm
Max edge thickness 8 mm
Feed speed 14 mm
Min panel width 60 mm
Min panel length 250 mm
Edge thickness in roll 0,4-3 mm
Edge thickness in strips 0,4-8 mm
End cutting unit with 0,5 blade motor HP 0,37 ( 12000 kw) at 45 rpm with XNUMX° diagonal electro-pneumatic movement with vertical cut
Tilting trimmin unit 0° – 45° equipped with two motors 0,5 HP (0,37 kw) at 12000 rpm Large vertical and horizontal chromed feelers. the group automatically adjusts to the thickness selected with the pressure group.
On request:
Automatic edge feeder unit
First motorized pressure roller
quota meter SYCO
Total usable power: 8kW
Absorbable current: 15,2 A
Machine length 3100 mm
year of production 2000
CE
- Italy
- uzate
