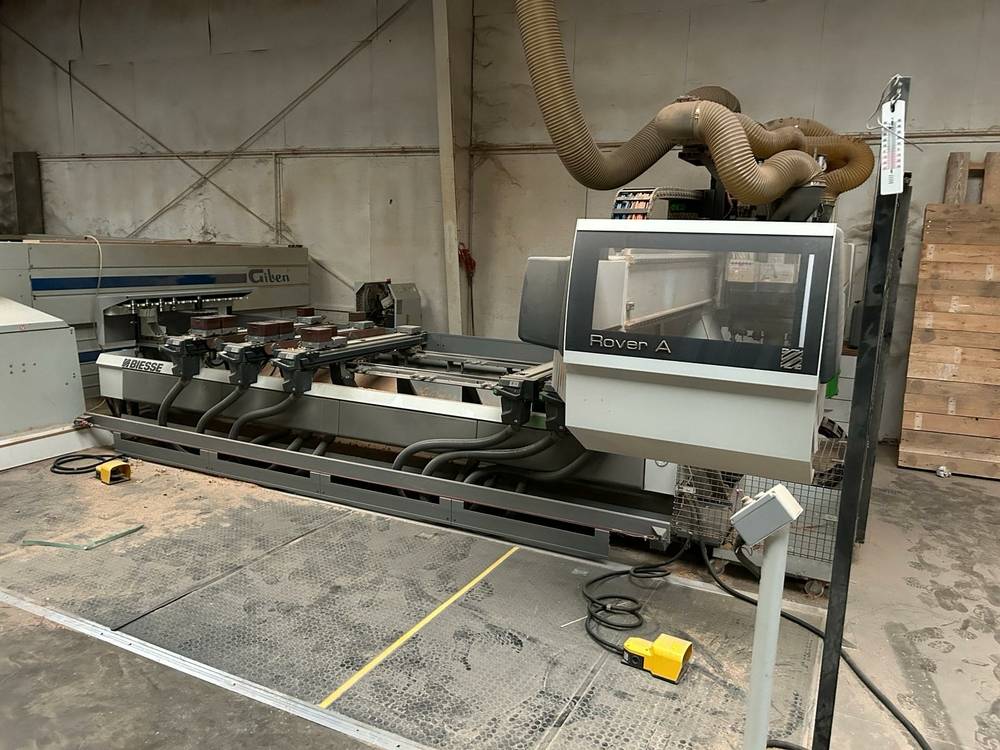

X axis travel : 3290 mm
Y axis travel : 1100 mm
Z axis travel : 326 mm
Part passage : 170 mm
Electrospindle :
5-axis spindle, 11 kW
HSK F63 chuck
Revolver-type tool magazine, 16 tool holders
Tool magazine at end of work surface, 10 tool holders
BH26 2L drilling unit :
Vertical and horizontal drilling unit + grooving unit
16 vertical drill bits, 32 mm centres (8 X-oriented and 8 Y-oriented)
8 horizontal drill bits, 32-mm pitch (4 X-oriented and 4 Y-oriented)
2 grooving blades, diameter 120 mm, for grooving in X and Y (useful cut 25 mm)
Independent Z drilling unit to optimize machining times
Work surface :
NC-controlled worktable with motorized moving beams
6 ATS beams with automatic positioning (EPS) and suction cups
3 steerable suction cups with motorized movement per beam
1 Vacuum pumps 250 m3/h
Controls :
On Windows PC
RM850 remote control with integrated LCD screen
2 pedals for cycle start
Controlled by BiesseWorks software
BiesseWorks Advanced software machine version:
Programming and optimization of drilling, cutting, milling, toolpaths and tool changes
Customized parametric macros
Network and/or USB file imports
3D part and toolpath simulator
Parametric programming of the workpiece
Collision management
Tooling set and parametric cones supplied
