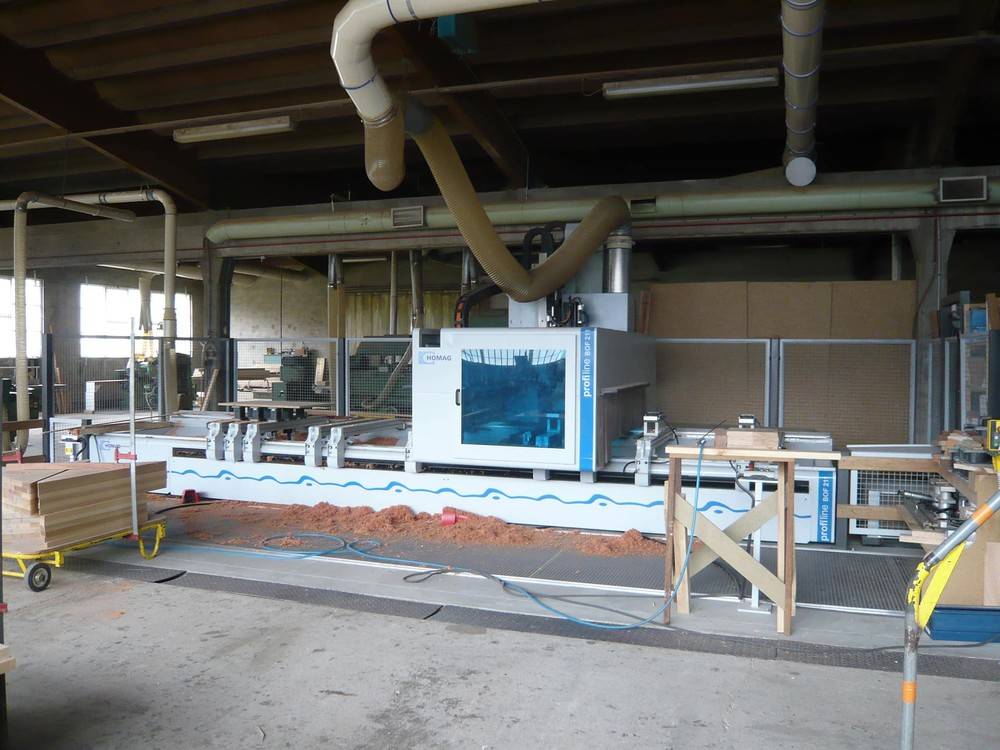

Ref: C2912
5 axes
Max workpiece length single 6000 mm, pendulum 2375 mm
Max. workpiece width rear 1300 mm
Max. workpiece thickness 300 mm, incl. clamping device
Consoles with front stop 10 units
100 mm high suction cups for processing the underside of the workpiece
Vacuum pump 2 x 100 m3/h
Windows control system
Windows XP operating system
17" TFT flat screen
WOODWOP program
Graphic representation of the clamping stations
Modern 3D graphic interface software
Remote diagnostics
Operating voltage 400 V, 50/60 Hz
Control cabinet can be positioned on the right or left
5-axis main spindle 15 kW drive5+
HSK F63
Liquid cooling
Electronically controlled from 1000 -24000 rpm
Tool length 230 mm max
Tool Ø: max 180 mm for milling tools
350 mm max for saw blade use
Z-axis travel 750 mm
Vibration sensor for monitoring the spindle during machining
Tool changer by disc 18 stations D=130 milling tool HSK F63
Place pickup for saw blade 350 mm
25 spindles drilling unit (19 vertical, 2+4 horizontal, grooving saw)
Laser projection for positioning of suction cup clamp to show the contour to be milled program in WOODWOP
Chip transport belt
