Year of manufacture 2015
Workpiece return Conveyor belt

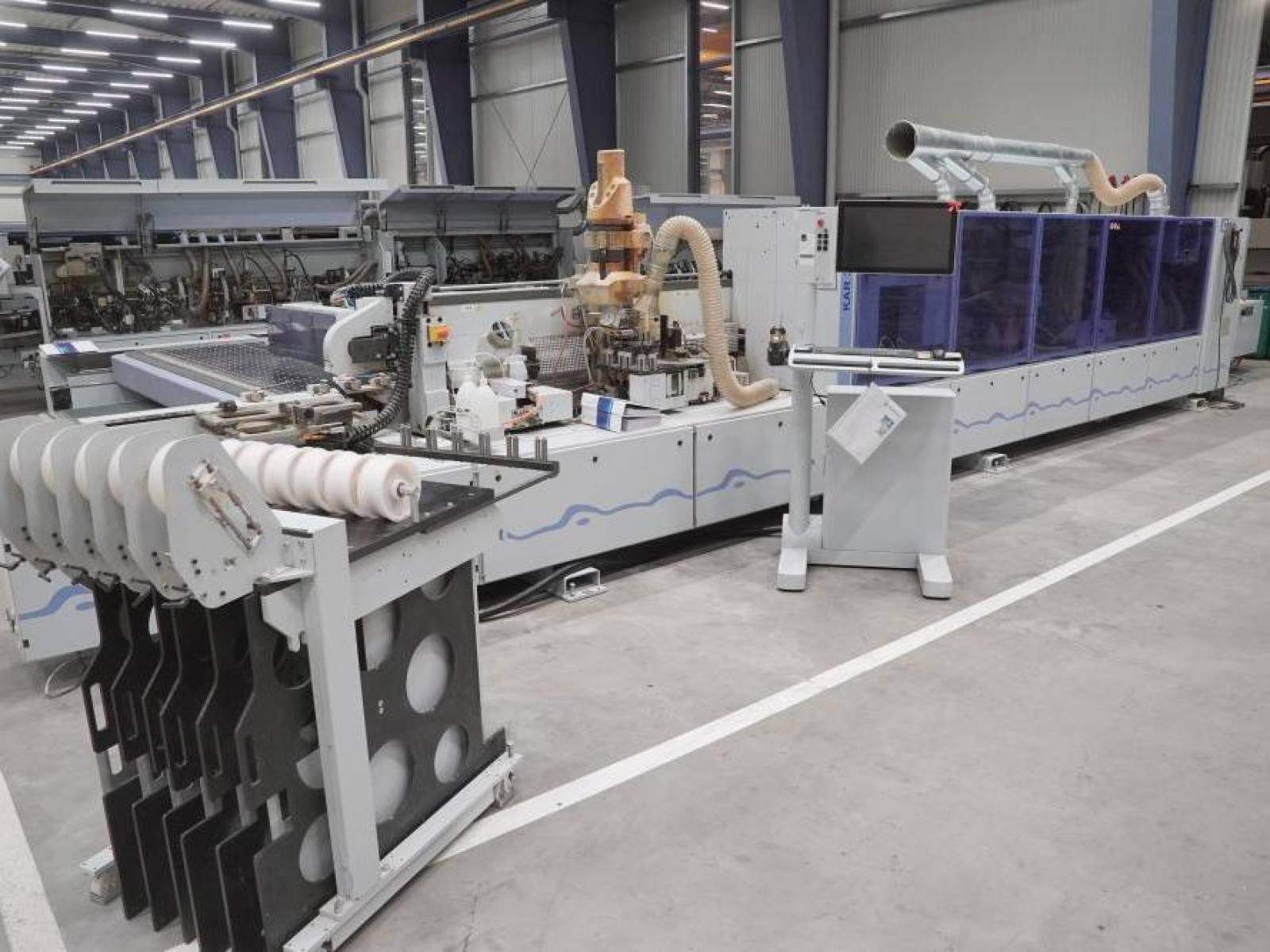

HOMAG AUTOMATION TFU 140 BOOMERANG
HOMAG Workpiece infeed EZ 14
Edgeband thickness max 3 mm
Panel thickness max 60 mm
Thickness of coiled edgeband max 3 mm
Workpiece length min 120 mm
Workpiece width min 60 mm
Feed min 16 m/min
Feedrate max 20 m/min
Continuously variable feed
Electromotoric height adjustment
Top pressure by belt
Places in coil magazine 6
Glue system cartridge
Glue system granulate glue pot above feeding chain
Quick-change glue pot
HOMAG Glue system QA 65
Suitable for PUR glue
HOMAG Glue system PU 65
Spraying device
Release agent
Cleaning agent
Premilling unit
HOMAG Premilling unit S 2
Trimming saw 2 motors
HOMAG Trimming saw HL 86
Flush/radius/chamfer milling units 2
HOMAG Flush milling unit BF 20
HOMAG Fine milling unit MF 21 Multi-milling aggregate
Corner rounding unit 1 motor
HOMAG Corner rounding unit FK 30
Scraper unit Profile scraper, Flat scraper
HOMAG Scraper unit MN 21 AUTOMATISCH Multi-cleaning
HOMAG Scraper unit FA 21 Polishing aggregate
Buffing unit
Aggregates actuated by control NC-axes
Type right-side machine
Machine length 10.235 mm
Suitable for nesting Yes
Equipping in the gap
HOMAG Edge control
Control HOMAG POWER CONTROL PC 23, Homag powerTouch
Conformity marking CE mark
https://www.hoechsmann.com/30118
2024-11-12 12:59:25
- Germany
- Second hand
