9 spindle fourside moulder GAU-JING 930D-CE

работа:
Gau-jing
модель:
930d-ce
Описание:

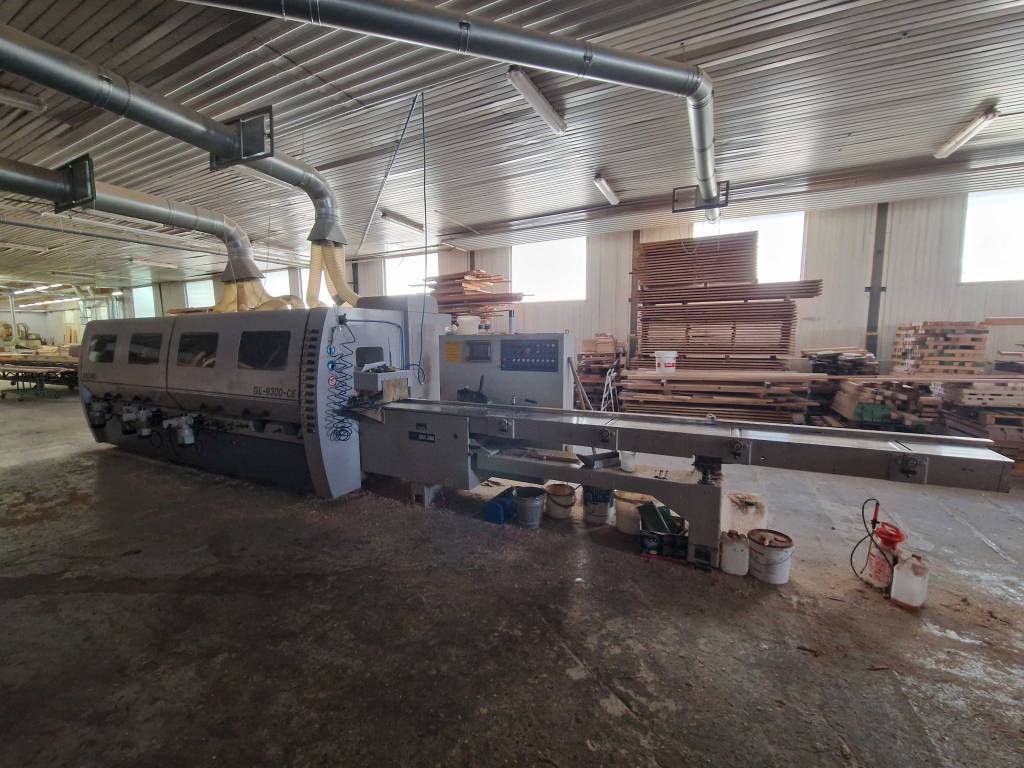

I sell the heavy duty fourside moulder GAU-JING 930D-CE.
Element max. 300x200mm !
Feeding speed up to 36m/min !
5,00m long infeed table hard chromed!

9 spindle configuration:
Bottom 11kW (15HP) / 6000 rpm
Bottom 11kW (15HP) / 6000 rpm
Right 7,5kW (10HP) / 6000 rpm
Left 7,5kW (10HP) / 6000 rpm
Right 7,5kW (10HP) / 6000 rpm
Left 7,5kW (10HP) / 6000 rpm
Top 11kW (15HP) / 6000 rpm
Top 11kW (15HP) / 6000 rpm
Bottom 11kW (15HP) / 6000 rpm

Feeding motor 11kW (15HP)
Total power 100 KW / 160 A
Total weight 10.000kg.

Element max. 300x200mm !
Moulding heads and accessories included in price. 3 hydro heads out of that.
Electronic programmer for the working width and height adjustment  of the pressure zone and top spinde, aka working height.
Feeding speed adjustable by inverter.
Feeding rollers in table.
13-Zone pneumatic pressure system for feeding wheels.

Very good condition. Available immediately. Possible to test.
Including fully documentation and CE.

Год:
2007
Цена:
47 000.00 €
