Marca:
Scm
Modello:

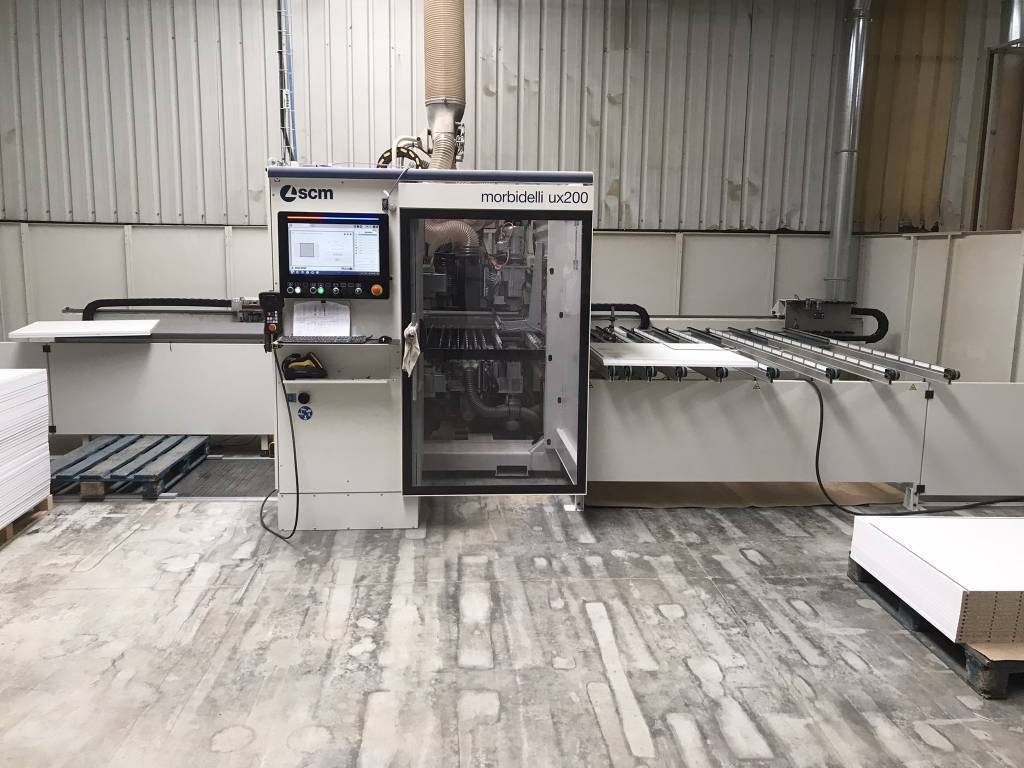

Morbidelli ux200
Descrizione:
These machining centre is realized to satisfy all the drilling, routing and grooving operations; they are equipped with specific operating units to allow simultaneous processing on two panels overlapped.
morbidelli ux200 can be integrated into a production line as well as working as a stand-alone machine.
Total working minutes : 4345
Panel length (max.) = 3200mm
Panel width (max.) = 1300mm
Panel thickness (max.) = 80mm
X-Y-Z axes speed (max.) = 120- 35- 30 m/min
Vertical spindles = 48+48
Horizontal spindles = 16(X)/4(Y)
Integrated blade in X axis = 125 Ø mm
software Maestro CNC
Anno:
2022
- Portugal
- Usate
