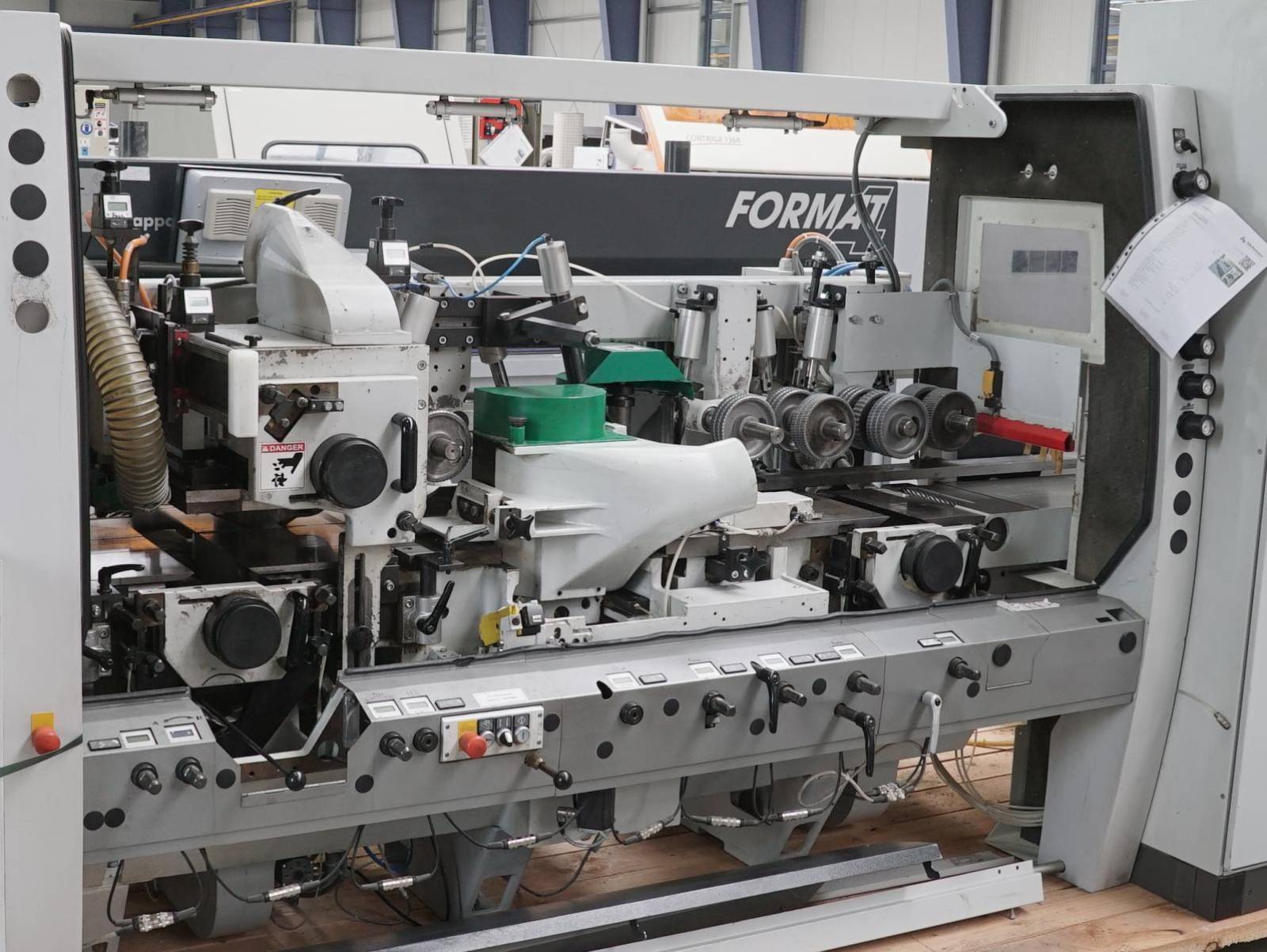

Año de fabricación 2012
ancho de cepillado 300 mm
altura de cepillado 200 mm
número de husillos 5
husillo inferior 2
Husillos derecha 1
husillos a la izquierda 1
husillo superior 1
Colocación de husillos i-d-z-s-i
velocidad de rotación del husillo max. r/min 6.000 rpm
diámetro del husillo 50 mm
avance max. m/n 36 m/min
avance sin escalas
avance KW 9,5 kW
Motor principal 22 kW
eje de sierra
eje de sierra 22 kW
jointing junta derecha
Husillo con barra de rodamientos
sujeción hidráulica
motor separado para cada usillo
regulación motorizada mando por programa
Superficie de la mesa de la máquina recubrimiento duro
longitud de la mesa de entrada 1.200 mm
rodillos de la mesa accionado
Bomba de lubrificación Automático
Presión descendente neumática
rodillo de arrastre por pulsos
Accionamiento de alimentación a rodillos cardán
agregado de achaflanado
Ejes CNC Sí
Dispositivo antirretorno
mando WEINIG MEMORY PLUS-SYSTEM
Conformity marking CE mark
Memory Plus
Kickback Protection
Without planer heads
1. Bottom Spindle 11 kW with counter bearing
Tool cutting circle: 150–180 mm
Axial adjustment: 17 mm (possible even with the counter bearing closed)
Requires a hydro cutterhead
2. Right Spindle 11 kW
Tool cutting circle: 112–250 mm
Maximum profile depth: 35 mm
Axial adjustment range: 80 mm
3. Left Spindle 11 kW
Tool cutting circle: 112–232 mm
Maximum profile depth: 35 mm
Axial adjustment range: 80 mm
Pneumatic side roller pressure
4. Top Spindle 15 kW with counter bearing and pneumatic clamping
Maximum profile depth: 35 mm
Tool cutting circle: 150–250 mm
Axial adjustment: 45 mm (possible even with the counter bearing closed)
JOINTER for straight knives and tools with a diameter of 150–163 mm
Remote control, automatic stone feed (Steinzustellung) working width up to 300 mm
Requires a hydro cutterhead
Chamfering Unit (FASEAGGREGAT) 1.1 kW
Shaft diameter: 16 mm
12,000 rpm
Tool cutting circle: 80 mm
Automatic adjustment together with the left spindle
5. Bottom Spindle 22 kW with counter bearing (can also be used as a saw shaft)
Maximum profile depth: 15 mm
Tool cutting circle: 150–250 mm
Axial adjustment: 45 mm (possible even with the counter bearing closed)
JOINTER for straight knives and tools with a diameter of 150–163 mm
Remote control automatic stone feed working width up to 300 mm
Table plates for wooden inserts and an additional discharge plate above the spindle
Requires a hydro cutterhead
Unless expressly stated, tools or other accessories and parts that may be shown in photos and videos are not included in the scope of delivery.
