Make:
Omec
Model:
750
Description:

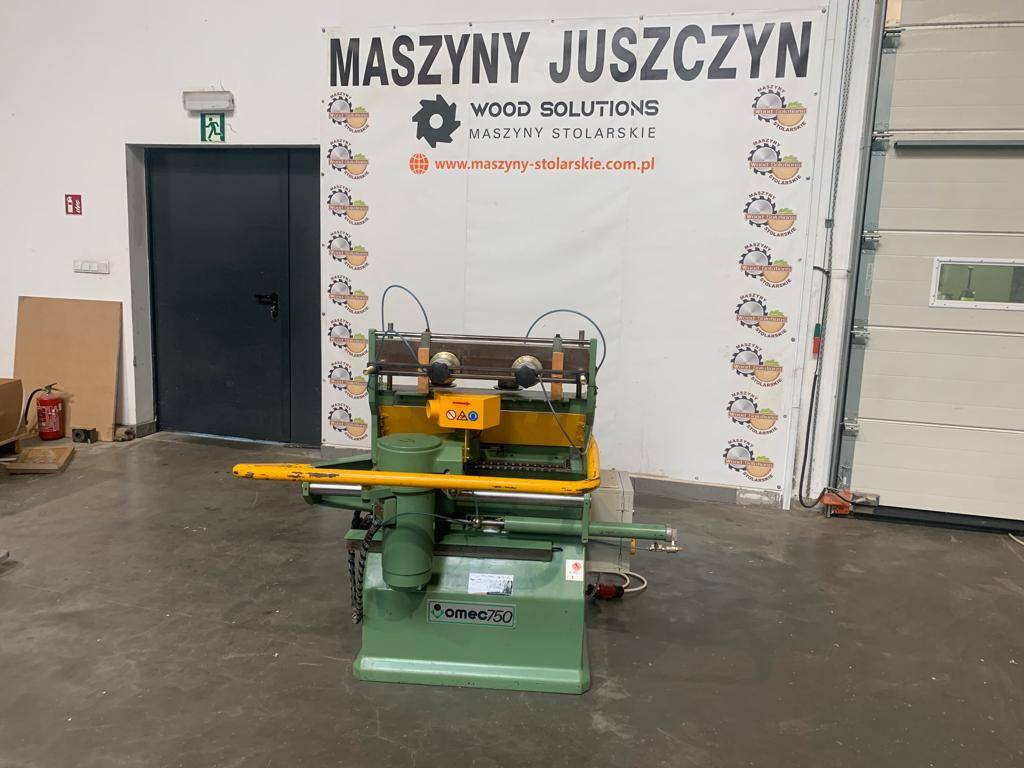

OMEC 750 drawer joint milling machine
A machine designed for making connections, including drawers and boxes
The operator simultaneously sets two elements to be joined, then the machine
Automatically mills along the entire length
Spindle on eccentricity
Milling motor power 1.1 kw
Spindle speed 18,000 RPM
Two working speeds 25 and 35 n/-1
Machining parameters:
Front thickness: min/max: 7/60 mm
Side wall thickness: min/max: 10/30 mm
Gate height: min/max: 6/18 mm
Machine dimensions: 1300x700x1200h mm
Machine weight: 400 kg
- Poland
- Second hand
