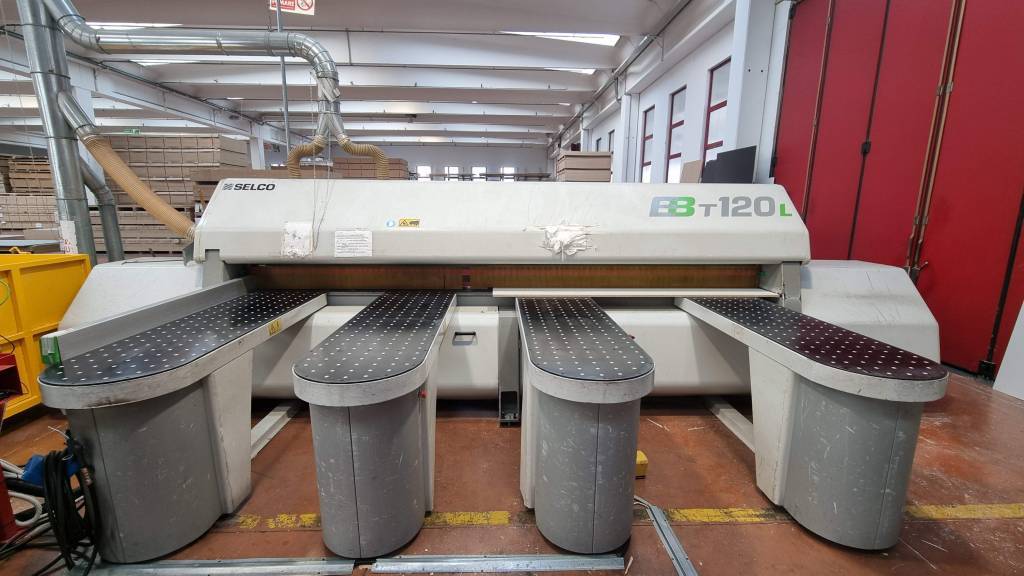

4400MM NUMERICALLY CONTROLLED PANEL SAW. WITH AUTOMATIC LOADING
DESCRIPTION:
Solid, reliable and versatile panel sizing center that can meet the requirements of all types of customers : from the small company seeking maximum simplicity of use, to the medium-sized company working on multiple shifts or wanting to automate the process, to the large company working in batches.
Baseplate : The one-piece construction makes the carriage/base assembly extremely compact. The guides are fixed to the basement along their entire length to ensure maximum linearity of travel. The ascent of the blades takes place on prismatic recirculating ball guides that ensure perfect perpendicularity with the work surface resulting in an excellent cutting finish.
Carriage and blade travel on prismatic guides: maximum rigidity and perpendicularity of the blade to the panel stack. Drastically reduced friction in play and material wear, even at higher speeds. Maximum stability of stroke linearity and structure characteristics over time.
Presser: openings made in the presser bar eliminate the area of interference with the clamps allowing full use of the panels with small tail cuts and trims as desired.
TECHNICAL FEATURES:
- Cutting dimensions: mm. 4,400 X 2,200
- Blade projection: mm. 122
- Blade diameter: mm. 430
° No. 7 Pliers
- Blade carriage speed: m/min.150
- Pusher speed: m/min. 60
- Total installed power: Kw 27
- Operating pressure: Bar 7
- Side aligner with two pressure elements
- Loading lift table
- Frontal aligners for automatic loading
- Front air curtain tables: No. 4
- Numerical control with PC and 15 '' video and Windows 95 operating system
- Total machine weight kg. 7500
- Italy
- Second hand
