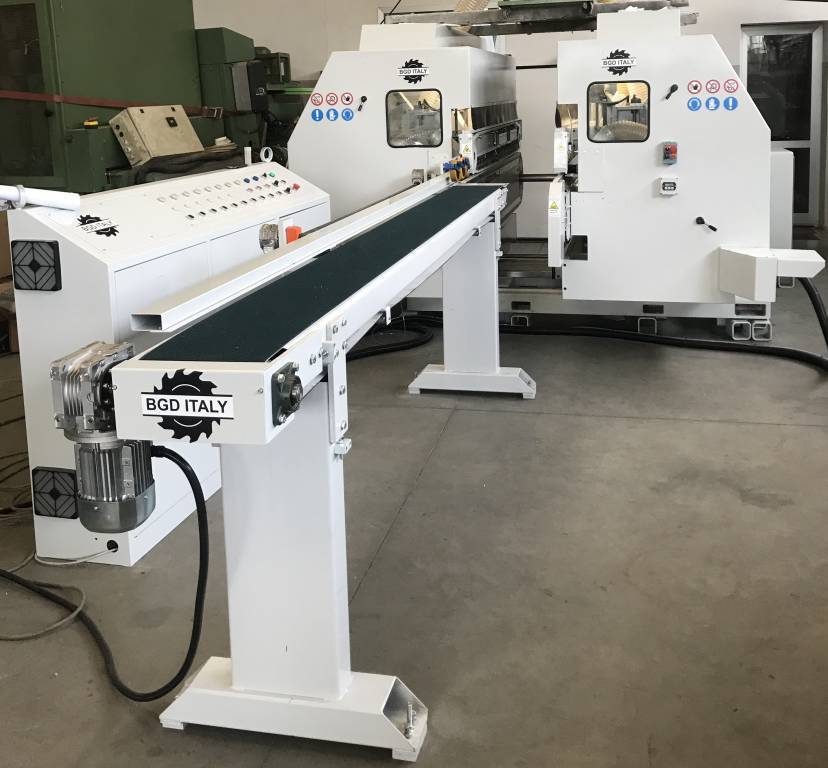

Automatic profiling machine from entry conveyor, for longitudinal wood processing.
Material: Engineered 2-3 layer parquet with bevelling
Profile: T&G joint system or CLICK joint system (Unilin-Valinge)
Length pieces min/max 400-3000 mm
Useful working length min/max 80-350 mm
Max. working thickness 10-50 mm
Working units 4+4
Max useful opening width for maintenance service 800 mm
Left fixed side, right movable side
Adjustable feed speed 8-40 m/1’ (on request 60 m/1’)
Motor power of tools 5,5 KW (optional 7,5-9,2 KW)
Inverter for motor rotation up to 6000 rpm
Wide-belt top track with short-pitch pressure wheels
Feed unit with belt variator
Antinoise cabins, and diagram showing the sound reduction on the soundproof material
According to the different processing needs, the feed chain can be either sliding, or rolling on bearings
Digital readout for movable side shifting
On request additional motor unit for machine composition 5+5
- Italy
- Second hand
