Make:
putsch meniconi
Model:
Svp 145 plus
Description:
Machine Details

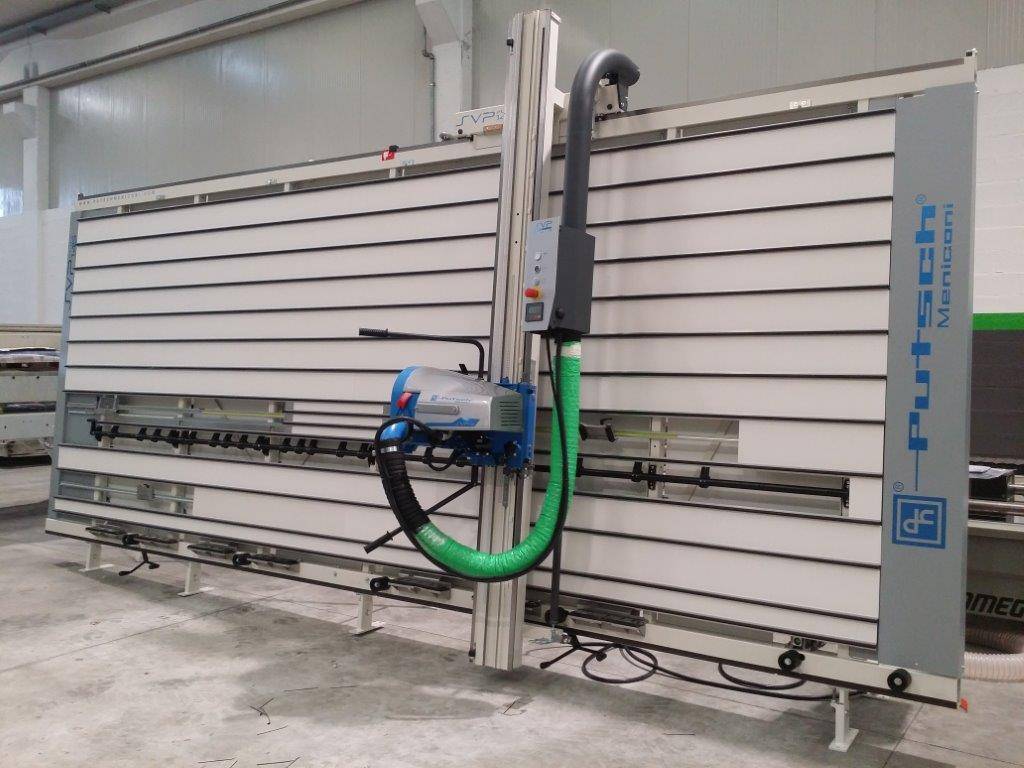

- BRAND Putsch Meniconi
- MODEL: Svp 145 Plus
- CONDITION: Brand New
- DELIVERY: Ready
Technical details
For WOOD, COMPOSITE, PLASTICS and ALUMINIUM materials
for cutting in vertical and horizontal position. Heavy duty machine assuring strength with a welded steel frame. Automatic shifting frame to avoid the cutting of the plastic strips during the horizontal cuts. Bottom aluminium supports with phenolic soles, for a safe support of the panels, and with Lift-up Rollers for a better sliding of the same. Manual displacement of the beam and saw carriage for horizontal and vertical cuttings; these last are assured in N° 5 fixed points locking to the frame.
Manual plunging and returning of saw carriage, by means of ergonomic lever.
- -Automatic shifting frame: ELECTRIC.
- -Short piece cutting device.
- -Integrated dust exhauster with bag or pre-arranged for independent dust collection.
- -N° 4 positioners for horizontal cuttings.
- -N° 2 Stops for vertical cuttings.
- -Lift-up rollers.
- -SELF-BRAKING motor.
- -All standard accessories: safety device, soundproofing, set service tools, user’s manual.
- Max. length of cut :mm 4200
- Max. height of cut :mm 2200
- Max. height of horizontal cut :mm 2080
- Max. depth of cut :mm 60
- Motor output :HP 5 (3.7 Kw)
- Blade diameter :mm 250
- Blade speed :rpm 5300
- Optionals: Electronic vertical/horizontal measuring display
Year:
2023
- Italy
- New
