Make:
Gennari
Model:
Lm120/4a
Description:

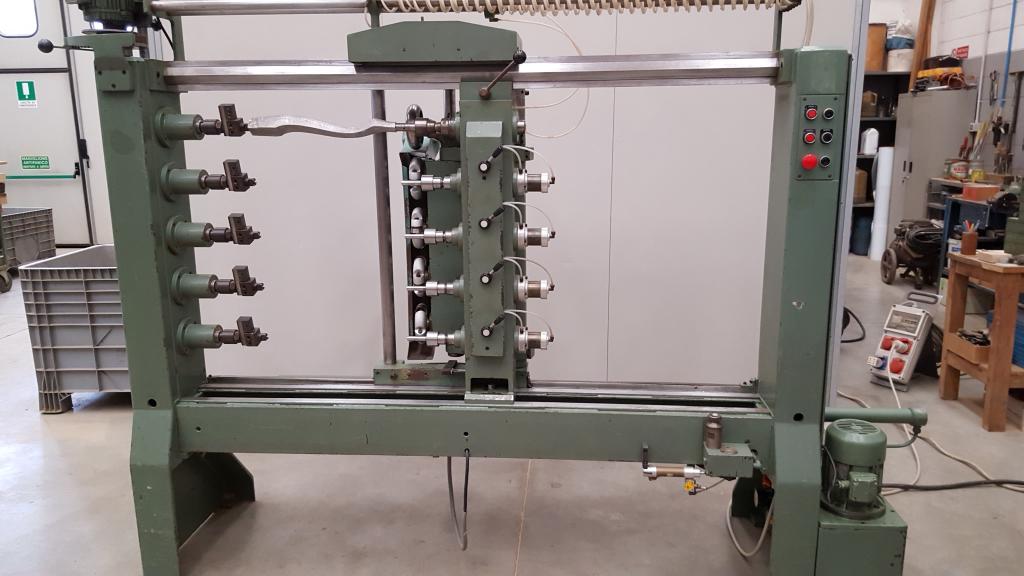

AUTOMATIC HYDRAULIC VERTICAL COPY LATHE Type GENNARI LM120/4A . Second hand
4 spindles + copy
hydraulic movement of carriage
feeding speed of carriage is regulable
quick reverse of carriage
automatic and pneumatic movement of tools unit
pneumatic press
distance between spindles mm. 170
max. length to work 1200
tools motor power Hp 7,5
motor spindle revolutions self acting brake Hp 0,75
motor oil pump Hp 1
net weight kgs. 900
Volt. 380/50
- Italy
- Second hand
