hydraulic lift famad paczków 1.5 tons

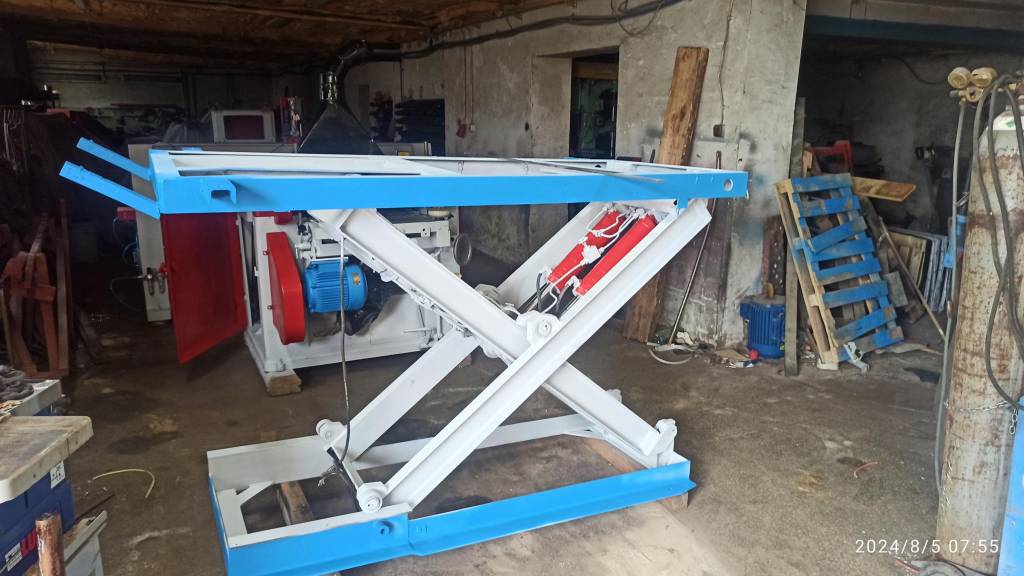

HYDRAULIC STATIONARY LIFT DHP - 1.5t
The DHP hydraulic stationary lift is used for stepless lifting and lowering of material at assembly, loading and processing stations with table dimensions similar to the EUR pallet, it allows maintaining a constant working level when loading or unloading material. The lifting table is lifted using two hydraulic cylinders, powered by a compact electro-hydraulic unit, controlled from the cassette. The cassette is equipped with "lifting", "lowering" and "EMERGENCY STOP" buttons. Load capacity max kg 1500
Table dimensions standard mm 900x2000
Height when folded (standard) mm ~230
Working stroke (max) mm 1100
Lifting time s approx. 30
Pressure in the hydraulic system MPa max 16
Noise level dBA approx. 72
Installed power kW 1.1
Electrical supply V AC 3/N/PE, 400V 50Hz
Control voltage V DC 24
Weight of the device kg ~450
