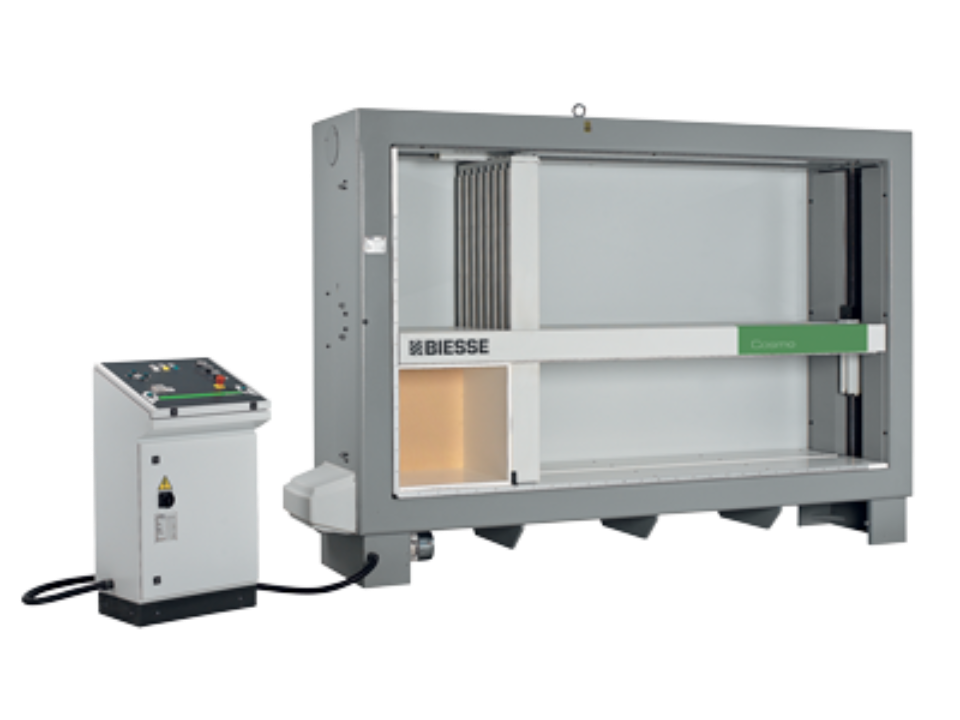

MACHINE DESCRIPTION
The machine consists of a monolithic steel structure inside which the transmission and guide organs of the moving parts are housed.
The vertical pressing platform is motorized at both ends and intersects the mobile lateral pressing shoulder thanks to the special comb structure.
All the parts in contact with the furniture to be pressed are covered in scratch-resistant material.
OPERATING CYCLE
After having pre-assembled the furniture, the operator manually positions it on the work surface and places it next to the fixed upright, then activates the pressing cycle via the bi-manual Start controls.
The vertical pressing platform and the horizontal pressing shoulder begin their stroke until they reach the dimensions of the furniture; at this point the grip is applied for the expected duration of the timing.
At the end of the cycle, by pressing the control buttons again, the operator starts the reopening of the machine to unload the processed furniture.
CONTROL PANEL
The electrical and control panel is independent on a lectern.
The machine is managed by an Omron PLC.
The control panel includes the programming of the pressing time; buttons for the manual movement of the platform and the mobile shoulder; selectors for the graduated regulation of the pressure to be applied: one for the vertical one and the other for the horizontal one; emergency mushroom button; automatic-manual selection button and bi-manual control with maintained action for the start and end of the cycle.
WORKABLE PANELS
• Useful height (min-max): 300 – 1,300 mm
• Useful length (min-max): 300 – 2,500 mm
• Useful depth (max): 700 mm
• Worktop height: 500 mm
• Installed power: 3.7 kW
MACHINE DIMENSIONS
• Overall length: 3,580 mm
• Overall width: 760 mm
• Overall height: 2,310 mm
• Worktop height: 700 mm (Overall height 2510 mm)
EQUIPPED WITH
• Safety devices required by CE-UKCA regulations, with fixed net on the rear side and bi-manual controls.
TECHNICAL SPECIFICATIONS
• Connection voltage: 400 V
• Frequency: 50 Hz
• Altitude: 0 ÷ 1000 meters
• Power supply: With neutral
• Phase type: Three-phase
• CE regulation
• Documentation language: Italian
