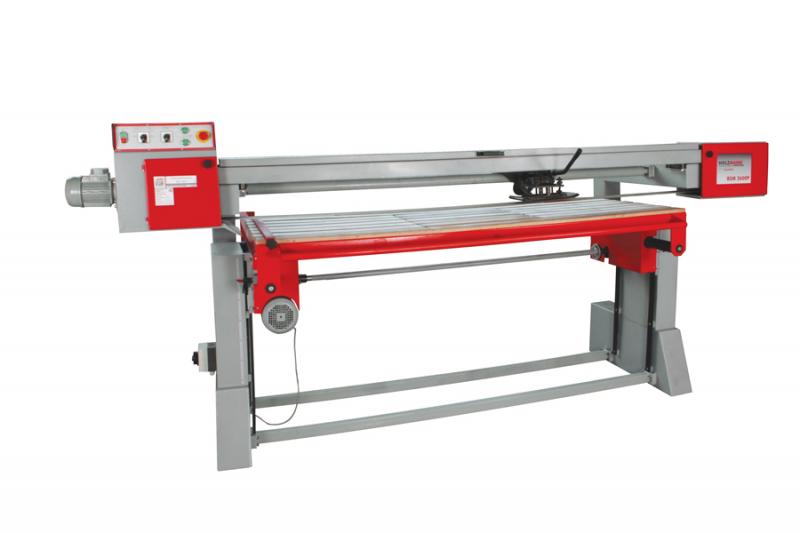

heavy and precise industrial setup
electric table height adjustment included
huge frame opening allows to process large work pieces
integrated dust collector with separate motor as standard
two sanding speeds as well as CW – CCW run as standard
dynamic balanced drive pulleys
graphite coated sanding shoe minimizes friction
removable table inlet (640x640mm) allows bulky work piece sanding works (frames)
dust collector connections: 2x120mm
working table dimensions 2500x820 mm
table height travel
600mm
belt length min/max 7000/7320 mm
belt width 150 mm
bend depth
600
bend heigth
210mm
roll diameter 240mm
belt feeding speed with possibility
for direction variation 18 / 36 m/s
main motor (2-speed) 2,4 / 3,0 kW
table lifting motor 0,55 kW
aspirating motor 0,55 kW
overall dimensions 4200x1600x1500
weight 480 kg
