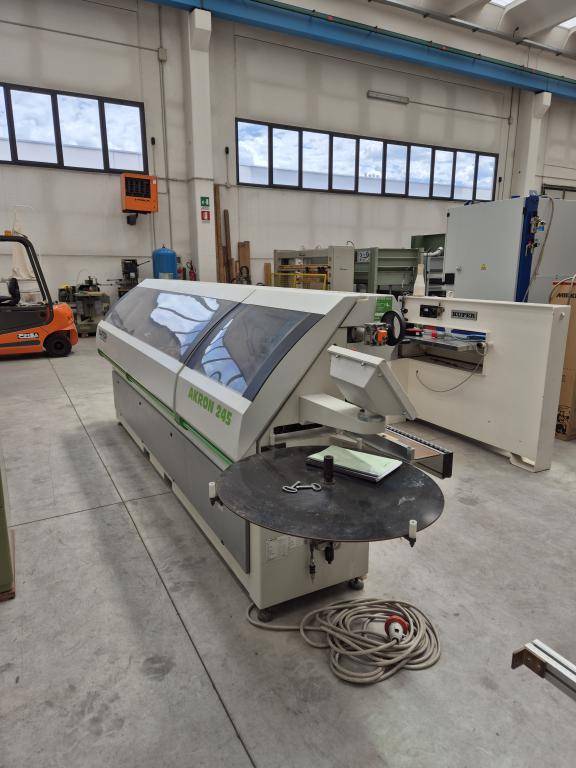

automatic edge bander BIESSE AKRON 245
second hand machine
CE regulation : Yes
with Instruction Booklets
for the application of edges in wood, pvc, veneer, melamine, abs for furniture, furnishings, kitchens, bathrooms, doors, panels and various
NC 321 electronic positioner
technical data :
min. height of gluing panel mm.10
max. height of gluing panel mm.45
min. thickness roll edge mm.0.4
max. thickness roll edge mm.3
max. thickness wood edge mm.8
min. panel width mm.50
min. panel length mm.150
feed speed motor power Hp 2
electric press lift
telescopic support for large panels
soundproof cabin
composition :
gluing group with glue tank
pressure rollers
edge feeder
end-cutting unit for front and rear vertical cutting of the excess edge - n.2 motors
trimming unit with overlapping motors for trimming the upper and lower part of the excess edge - n. 2 motors
tilting trimming unit for the final upper and lower trimming of the excess edge - n. 2 motors
glue scraper group for cleaning glue residues
overlapping brush group for brushing and polishing the applied edges - n. 2 tiltable motors
compressed air 7-8 bar
weight kg 1700
- Italy
- Second hand
