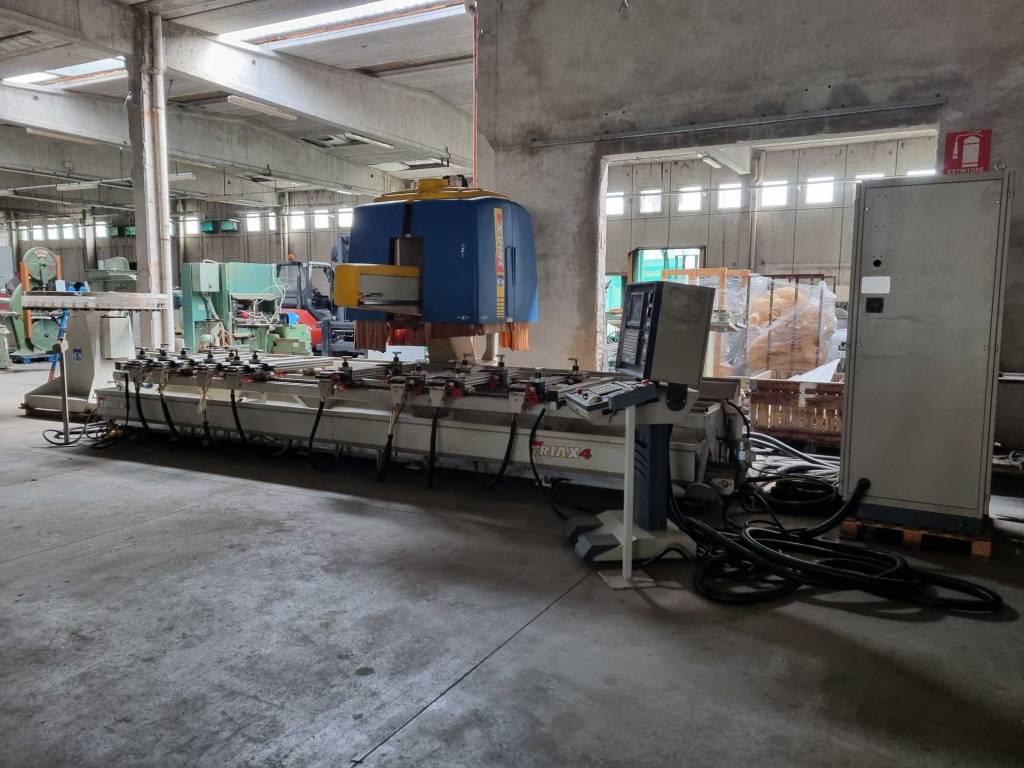

CNC WORKING CENTER for WINDOWS - CMS TRIAX 4.50S TCU63-RR
year of manufacturing 2002
CE standard
No. 4 axes controlled
axes strokes and max speed: X 5000mm 80m/min - Y 1800mm 60m/min - Z 280mm 30 m/min - B 360° continous (for angular heads rotation)
working area 5000x1370 mm
operating unit TCU63 - electrospindle power 13 kw (17,5 hp) - liquid cooled - max rotation 18000 rpm - HSK63E collect
double automatic toolchanger disk - No. 16+40 positions
working table equipped with No. 8 Schmalz bars and No. 16 clamps
No. 8 frontal reference stops + No. 2+2 on side
motorized belt for scrap ejection
automatic lubrication
cnc full digital Fanuc 180-iMA with integrated pc - panel control on movable carriage
air conditioner for electric cabinet
double frontal sliding door + side metal fences
user manuals + CE certificate
optional: No. 4 angular heads (blade d. 250 mm - horizontal pence - tilting pence - horizontal milling tool)
overall dimension for shipment 13600x2500x2800h mm
weight 6500 kg
